DIGITAL PRODUCT - RC Car PIt Stand - ISTC / 12th / Buggies (STL/3MF)

Description:

This is a virtual product - You are purchasing STL files for download for self-3D printing under the Creative Commons BY-NC-SA 4.0 license.

Virtual Product: This is not a physical item, these are downloadable STL/3MF files.

Overview

This is an RC car pit stand for your ISTC tourer, 12th pan or 1/10th off-road buggy!

Main Plate dimensions: approx. 160mm x 85mm

Legs

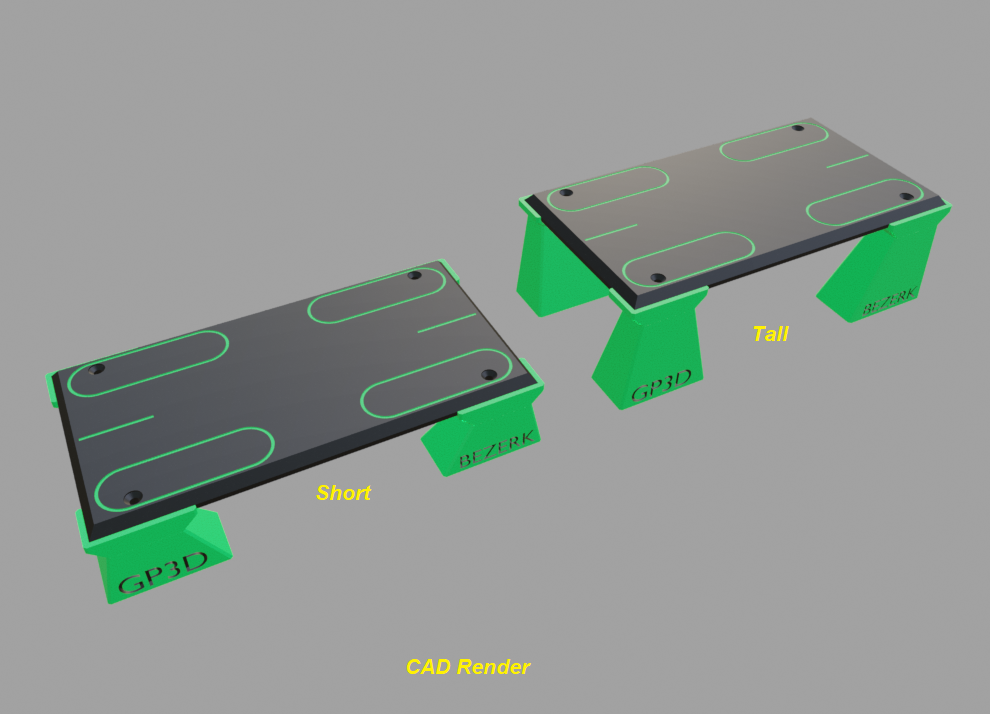

There are short and tall variants for the legs.

• Short: works well for ISTC Tourers and 12th scale (and even Pro-10!)
  • overall height with pads: ~38mm
• Tall: works well for 1/10th Off-road Buggies
  • overall height with pads: ~58mm

Assembly
Use 4x M3x16mm countersunk bolts to secure the 4 feet to the top plate.
The bolt head tops are then hidden from view after assembly if you apply the suggested (or similar) self adhesive pads...

Adhesive Pads
I used self-adhesive silicon pads from Temu:

The top surface items are; 57mm x 17mm:
Temu - Silicone Non-Slip Adhesive Pads - Long For Top Surface

Under the legs are shorter; 33mm x 17mm:
Temu - Silicone Non-Slip Adhesive Pads - Small For Under Legs

(if link becomes a sold out variant when you check, try a search for same thing and measurements noted above)

Printing Recommendation

• I have used Prusa PETG filament for printing these stands, but you can try any filament/colours as per your desire!
• I like to print top plate face down and feet outer faces towards textured print bed for a cool texture!

Assembly

• Requires 4x M3x16mm counter sunk bolts to attach the 4 legs to the main plate.
• It is designed to accept stick on silicon/rubber pads under the legs and on top surface for the car chassis to rest on. Many different pads could be used, but I have linked the ones I used (with the dimensions) above.

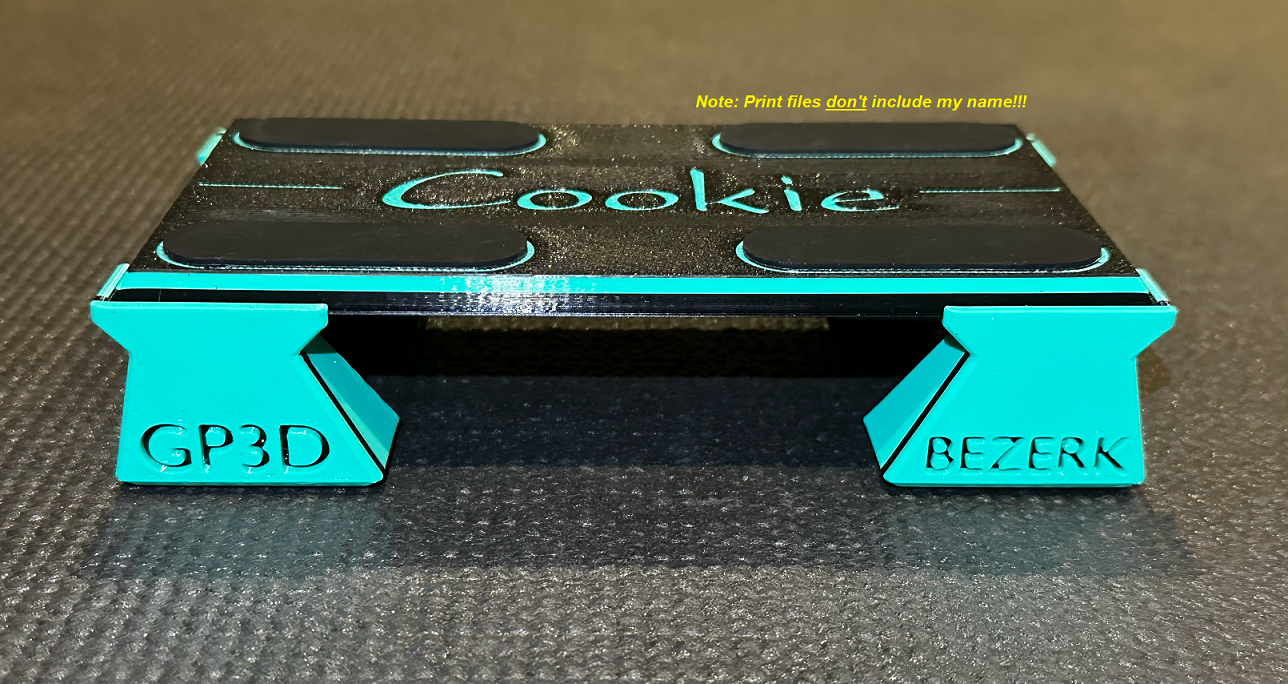

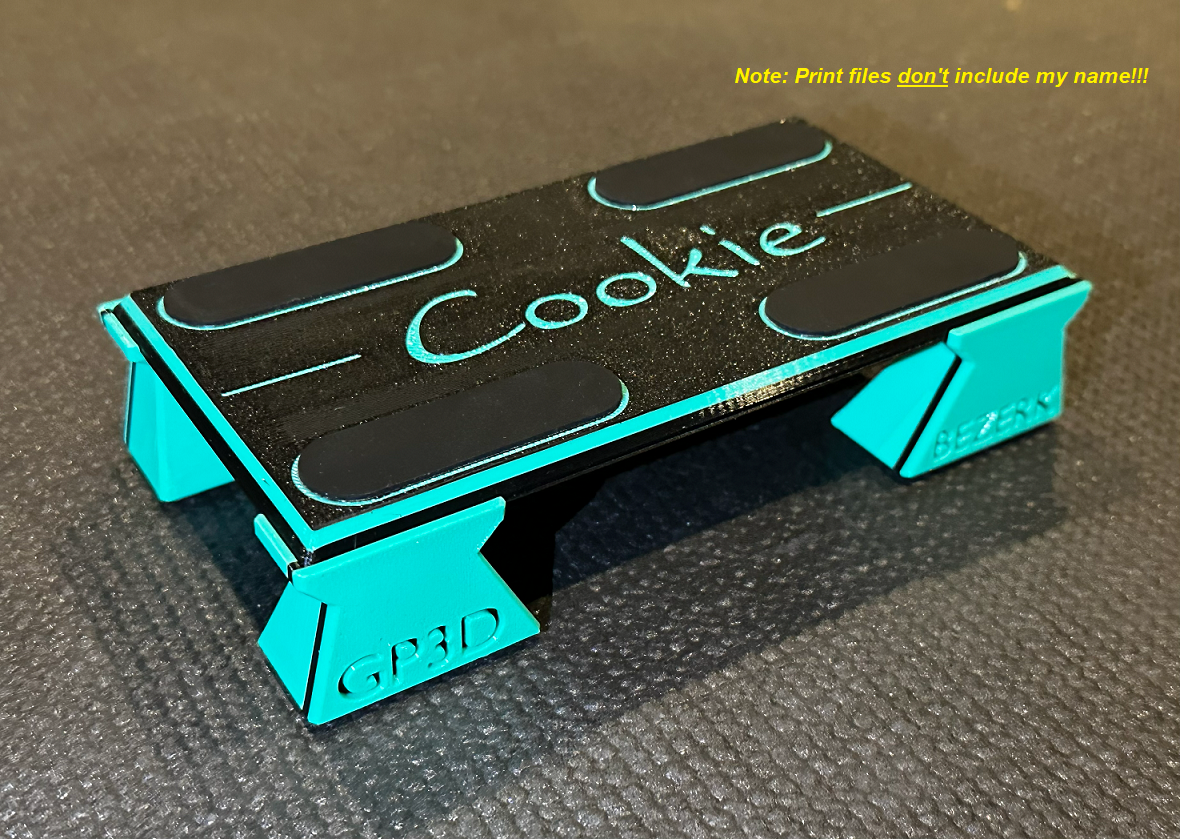

Note: Example prints shown in photos are NOT included - as this is a virtual product ONLY!!
